Linear Compensation Circuit of NTC Thermistor Based On Output Characteristics of Bipolar Junction Transistor-2
2019/01/21 03:01:50


Linear Compensation Circuit of NTC Thermistor Based On Output Characteristics of Bipolar Junction Transistor-2

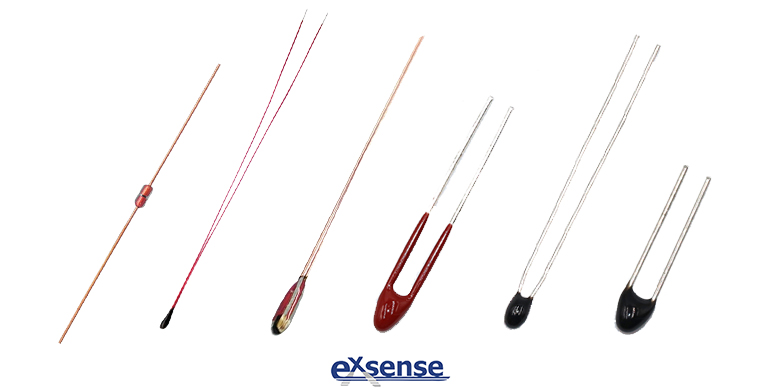

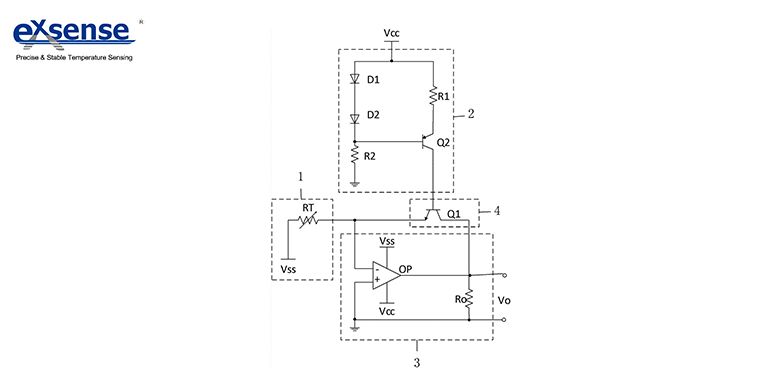

The method of linear compensation circuit of NTC thermistor based on output characteristics of bipolar junction transistor, can achieve good linearization compensating effect, reduce cost of production and make the sensitivity of the circuit higher. The NTC thermistor linear compensation circuit includes:


Sensing Module 1, which is used to detect the external temperature in real time and convert the detected temperature signal into a current signal;

Constant Current Module 2, which is used to control and adjust the collector current I of the second PNP type transistor Q2, so as to realize the control of the collector current I of the first NPN type transistor Q1;

Amplified Module 3, which is used to provide feedback, apply compensation of Compensation Module 4 to NTC thermistor R, and provide constant voltage to ensure constant voltage at both ends of NTC thermistor R;

Compensation Module 4, which is used to counteract the non-linearity of NTC thermistor R by using the non-linearity of the first NPN type transistor Q1 output characteristic curve, so as to realize the linearization function.

Interface Module 5, including two V interface, V output interface and GNG interface, where two V interface provide supply voltage to the entire thermistor linear compensation circuit, V output interface and GND interface provide output port to the external circuit.



The method of linear compensation circuit of NTC thermistor based on output characteristics of bipolar junction transistor has the following characteristics:



1. The circuit produced with the method of linear compensation circuit of NTC thermistor based on output characteristics of bipolar junction transistor, its linearization effect is very good. Through the relevant simulations and experiments, it’s shown that a great linearization compensating effect can be achieved within the temperature range of -25 ℃ to +125℃.

2. The circuit produced with the method of linear compensation circuit of NTC thermistor based on output characteristics of bipolar junction transistor, its circuit structure is very simple. Due to the direct transformation from non-linearity to linearity can be realized without the need of single chip microcomputer, so the circuit structure is great simple.

3. The use of the transistor output characteristics of the thermistor linear compensation circuit method of production of the circuit, its circuit conversion sensitivity is high. Completely based on analog components to realized, there is no need for cumbersome conversion of analog digital, avoiding a large amount of data processing and linear fitting, therefore, the sensitivity of circuit is great high.


The use of the transistor output characteristics of the thermistor linear compensation circuit method of production of the circuit, its circuit is conducive to mass production. This method can greatly reduce the cost of production and maintenance of NTC thermistor sensing circuit, so it’s completely conducive to mass production.
