The True and Fake of Infrared Thermopile
2020/03/12 03:03:01



Due to the recent outbreak of New Corona Virus Disease-2019 at home and abroad, the capacity of the forehead thermometer (infrared thermometer) can be described as explosive growth. The core of the forehead thermometer, the infrared thermopile, is also in short supply. The NTC chip produced by EXSENSE Electronic Technology Co., Ltd., with characteristics of high precision, good consistency, fast response speed and so on, plays an important role in temperature monitoring of the infrared thermopile.


Because demand is too much, the price of infrared thermopile has been raised, the unit price on the market has doubled several times. The pyroelectric infrared sensor (PIR sensor) is the most commonly used to impersonate infrared thermopile. This kind of sensor is low-cost, low-precision, which is generally used in induction lights, automatic doors, etc., its role is to sense the temperature, but it can not test specific values. The infrared thermopile, through its internal high-precision high-reliability NTC chip, which can be used for temperature monitoring, to obtain specific temperature values.


The mass production of the forehead thermometer has led to the emergence of a good and bad infrared thermopile on the market. In the face of fakes rampant market and suppliers fishing in troubled waters, how should we distinguish true and fake infrared thermopile? Next, EXSENSE electronics give you a few tips.

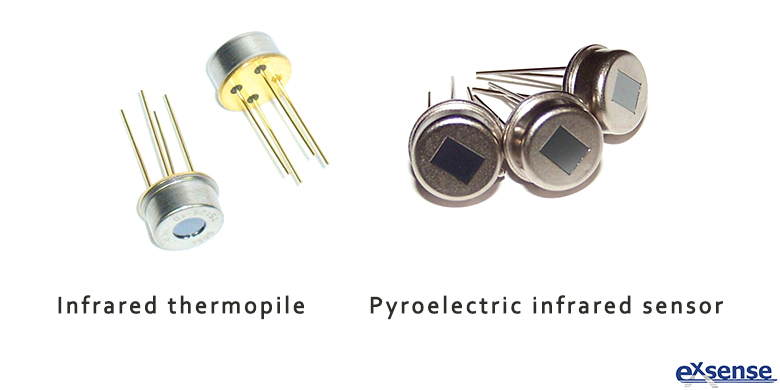

First, number of pins

The infrared thermopile has four pins, two of which are used for the output voltage, one pin connecting the inside NTC chip and one pin being grounded. The pyroelectric infrared sensor only has three pins, so the number of pins can be used as one of the methods for quickly identifying true and fake of infrared thermometer.

Second, packaging

The packaging of pyroelectric infrared sensor is mostly in bulk, while the packaging of infrared thermopile is strictly regulated. In order to avoid contamination or damage to filter, pin deformation, metal housing squeezed, etc., infrared thermopiles are usually packaged by waffle tray, foam tray and other ways to package.


Third, filter

The filter of infrared thermopile is usually round, but the filter of fake is usually square, which can also be used as an auxiliary method to judge the truth and fake.


The above several methods of identification are for reference only, the most rigorous detection method still needs to use the standard black-body furnace and the thermostatic water tank to calibrate and verify. The RT table provided by ach manufacturer is different, we need to check according to the parameters provided by the manufacturer.

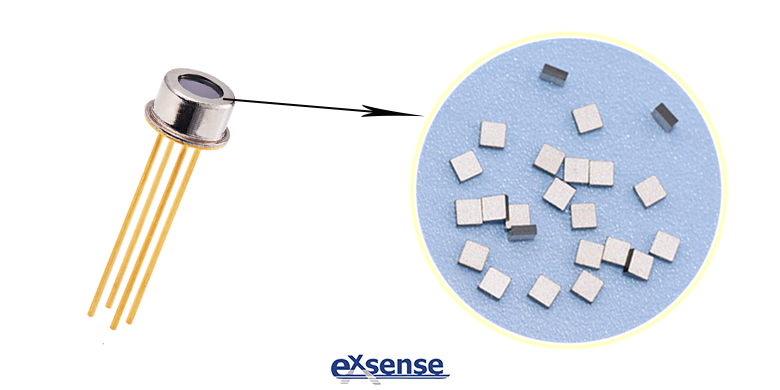

The core component of the infrared thermopile is NTC chip, which is small size, high sensitivity, great precision and high reliability, which helps the infrared thermopile to obtain more accurate measurement data during temperature monitoring.






Reference data:


Official account of WeChat - POLYTPE original article 《额温枪新旧产能受制于红外传感器,假货横行,三招教你认准真货》
