TS Series -- NTC Temperature Sensor

FEATURES

TS series NTC thermistors can be used in air conditioners, refrigerators, water heaters, washing machines and other electrical appliances. Our company produces NTC temperature sensor with high precision, high reliability characteristics.

1. Fast response, high accuracy.

2. Good coherence and interchange capability, high precision of resistance and B value.

3. Double packaging technique, good quality of insulation and packaging, good capability of colliding and bending, high stability.

APPLICATION

1. Air conditioners, Refrigerators, Freezers.
2. Water heaters, Potable water heaters, Air warmers, Washers, Disinfection cases.
3. Washing machines, Driers, Thermotanks.

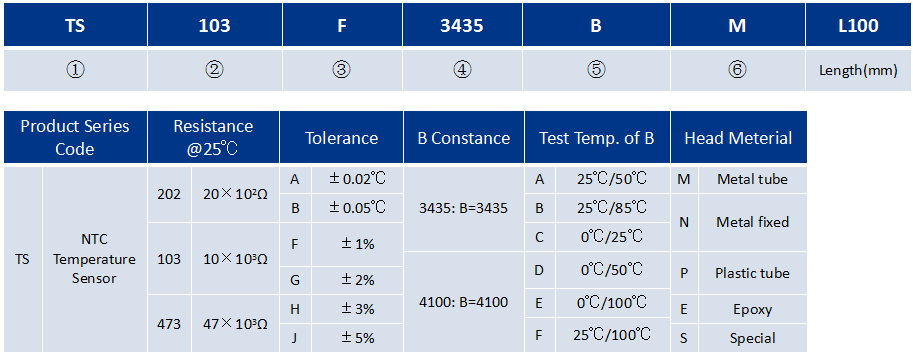

Part Number Identification

Electronic Parameter Specification

Part No.	R₂₅_℃ (KΩ)	B(K) 25/50℃	Rated Power @25℃（mW）	Dissipation Factor(δ) (mW/℃)	Thermal Time Constant (S)
TS502□3274A	5.0	3274 ±1%	10-20	2-4	5-20
TS502□3435B	5.0	3435 ±1%
TS502□3470A	5.0	3470 ±1%
TS502□3950A	5.0	3950 ±1%
TS103□3274A	10.0	3274 ±1%
TS103□3435B	10.0	3435 ±1%
TS103□3470A	10.0	3470 ±1%
TS103□3950A	10.0	3950 ±1%
TS103□4100A	10.0	4100 ±1%
TS153□3950A	15.0	3950 ±1%
TS153□4100A	15.0	4100 ±1%
TS203□3950A	20.0	3950 ±1%
TS203□4100A	20.0	4100 ±1%
TS223□4200A	22.0	4200 ±1%
TS403□3928A	40.27	3928 ±1%
TS503□3950A	50.0	3950 ±1%
TS503□4100A	50.0	4100 ±1%
TS104□3950A	100	3950 ±1%
TS104□4100A	100	4100 ±1%
TS104□4400A	100	4400 ±1%

◆Special part number could be custom designed.
