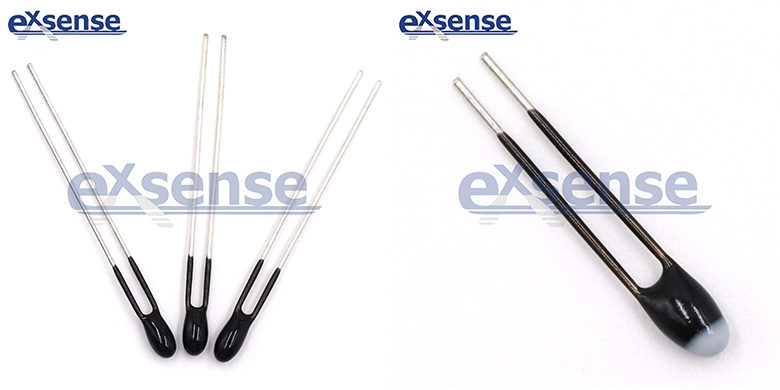

VT Series -- NTC Thermistor for Vehicle Temperature Sensor
FEATURES
VT series of NTC thermistor temperature sensor is suitable for vehicle, stability and good capability of heat cycle is suitable for manufacturing various transportation temperature sensor. Exsense Electronics Technology Co., Ltd. provide you with the most professional NTC thermistor chip and NTC thermistor components technical services, you can through the mail, telephone, QQ, etc. To contact us.
1、Excellent thermal cycle endurance.
2、High stability.
3、Operating range -40℃ -- 150℃.
APPLICATION
1、For various kinds of vehicle temperature sensor making. Eg: Automotive, Moto-Bicycle, Train, Ship.

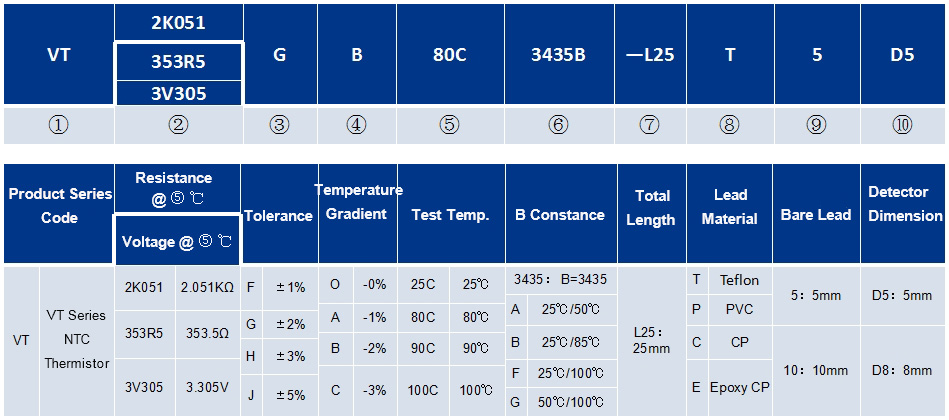

Part Number Identification
Electronic Parameter Specification


Part No. Temperature point (℃)

Nominal Value

(KΩ)

B Value

 (K)

Regular Size
(mm)
Rated Power  @25℃
(mW)
Dissipation Factor(δ)
(mW/℃)

Thermal Time

Constant (S)

VT78□4150A 80 0.078 4150 L25E5D3.5 150 1.5 ≤15
VT327□3470A 80 0.327 3470 L25E5D3.5 150 1.5 ≤15
VT309□3600A 80 0.309 3600 L25E5D3.5 150 1.5 ≤15
VT316□3470A 80 0.316 3470 L25E5D3.5 150 1.5 ≤15
VT316□3600A 80 0.316 3600 L25E5D3.5 150 1.5 ≤15
VT105□3470A 80 0.105 3470 L25E5D3.5 150 1.5 ≤15
VT287□3950A 80 0.287 3950 L25E5D3.5 150 1.5 ≤15
VT287□4050A 80 0.287 4050 L25E5D3.5 150 1.5 ≤15
VT147□3470A 80 0.147 3470 L25E5D3.5 150 1.5 ≤15
VT147□4250A 80 0.147 4250 L25E5D3.5 150 1.5 ≤15
VT619□3950A 80 0.619 3950 L25E5D3.5 150 1.5 ≤15
VT301□3600A 80 0.301 3600 L25E5D3.5 150 1.5 ≤15
VT274□4050A 80 0.274 4050 L25E5D3.5 150 1.5 ≤15
VT274□3950A 80 0.274 3950 L25E5D3.5 150 1.5 ≤15
VT141□3560F 110 0.141 3560 L25E5D3.5 150 1.5 ≤15



Special part number could be custom designed.

Package
