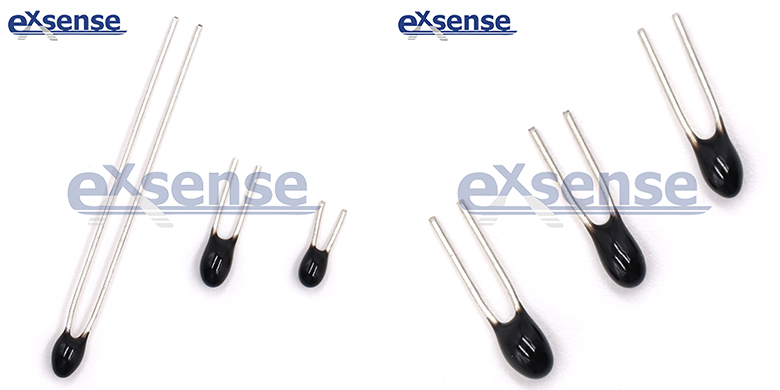

LT Series -- Small Size NTC Thermistor
FEATURES
LT series of non-insulated lead type NTC thermistor is suitable for making high precision temperature sensor. NTC thermistor components with small size, thermal fast, high sensitivity etc. Exsense Electronics Technology Co., Ltd. provide you with the most professional NTC thermistors chip and NTC thermistor components technical services, you can through the mail, telephone, QQ to contact us.
1、Small size, Fast response, High sensitivity.
2、High accuracy tolerances to +/-0.1℃.
3、Excellent thermal cycle endurance.
4、High stability.
5、Operating ranges -50℃ ~ +125℃.
APPLICATION
1、For high accuracy temperature sensor production.

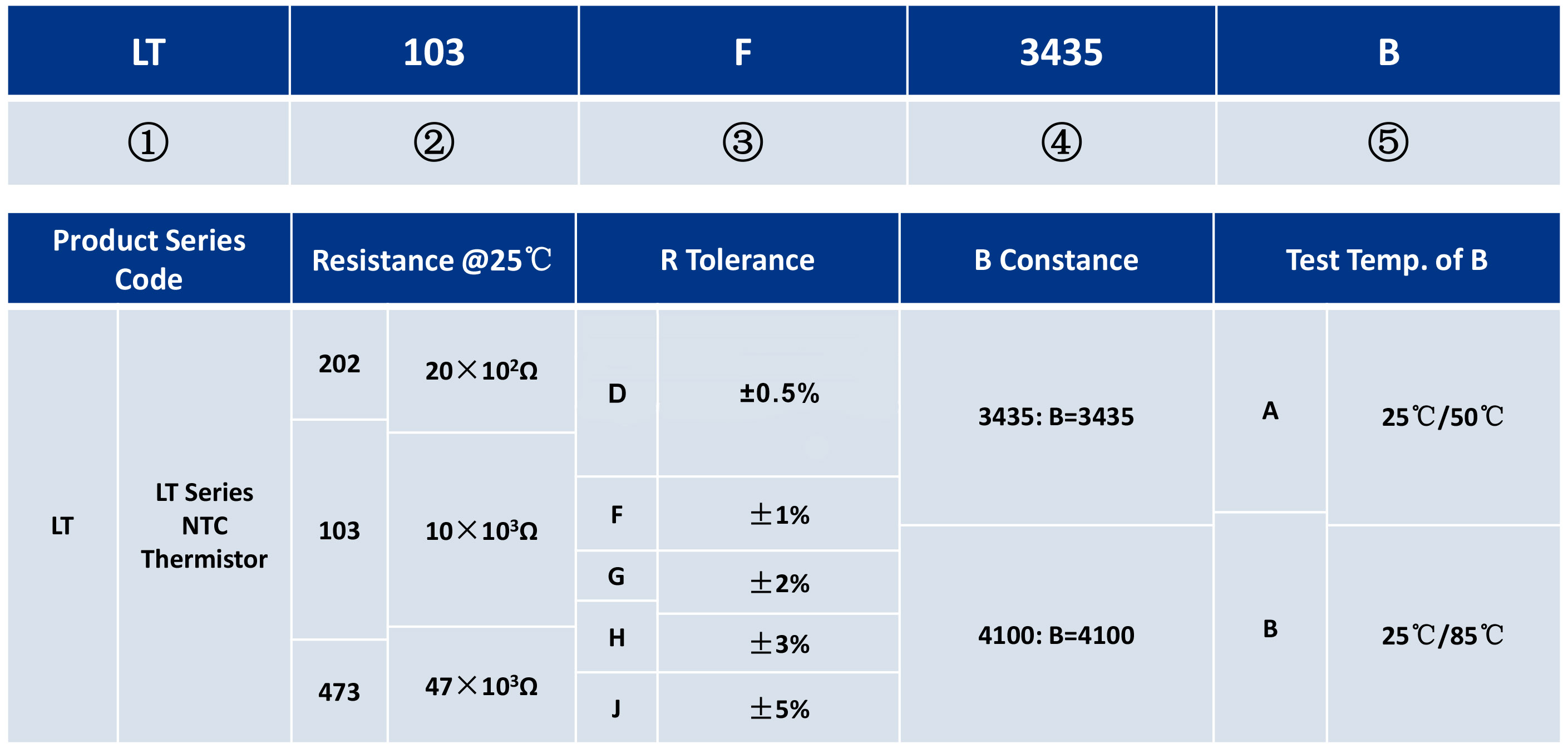

Part Number Identification
Electronic Parameter Specification

Part No.

R25

(KΩ)
B(K) Regular Size(mm)

Rated Power  @25℃

(mW)

Dissipation Factor(δ)

(mW/℃)

Thermal Time

Constant

 (S)
LT202□3470A 2.0  3470 05C17P20I35B45D1 130 1.5 ≤10
LT202□3950A 2.0  3950 05C17P20I35B45D1 130 1.5 ≤10
LT502□3274A 5.0  3274 05C17P20I35B45D1 130 1.5 ≤10
LT502□3470A 5.0  3470 05C17P20I35B45D1 130 1.5 ≤10
LT502□3950A 5.0  3950 05C17P20I35B45D1 130 1.5 ≤10
LT502□4250A 5.0  4250 05C17P20I35B45D1 130 1.5 ≤10
LT103□3435B 10.0  3435 05C17P20I35B45D1 130 1.5 ≤10
LT103□3950A 10.0  3950 05C17P20I35B45D1 130 1.5 ≤10
LT103□3470A 10.0  3470 05C17P20I35B45D1 130 1.5 ≤10
LT103□3200A 10.0  3200 05C17P20I35B45D1 130 1.5 ≤10
LT103□3977B 10.0  3977 05C17P20I35B45D1 130 1.5 ≤10
LT203□3950A 20.0  3950 05C17P20I35B45D1 130 1.5 ≤10
LT203□4100A 20.0  4100 05C17P20I35B45D1 130 1.5 ≤10
LT303□3950A 30.0  3950 05C17P20I35B45D1 130 1.5 ≤10
LT303□4100A 30.0  4100 05C17P20I35B45D1 130 1.5 ≤10
LT104□4100A 100.0  4100 05C17P20I35B45D1 130 1.5 ≤10


◆The B-tolerance is ±1% when R--tolerance within ±3%, others are ±2%.

◆Special part number could be custom designed.

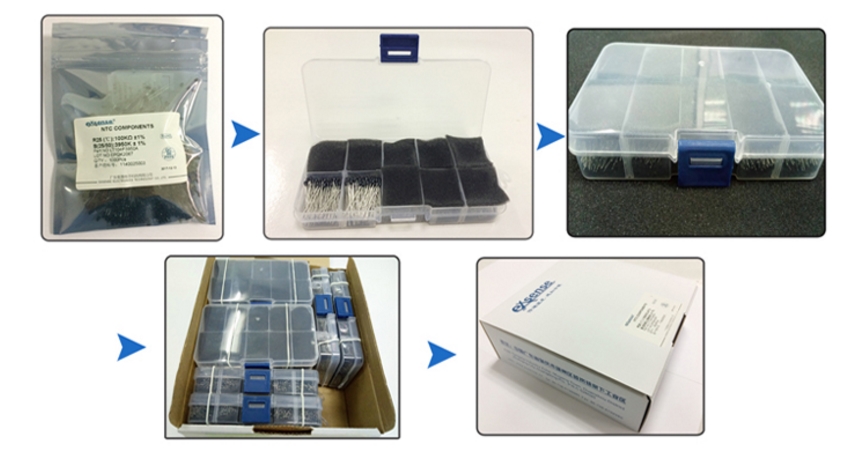

Package
