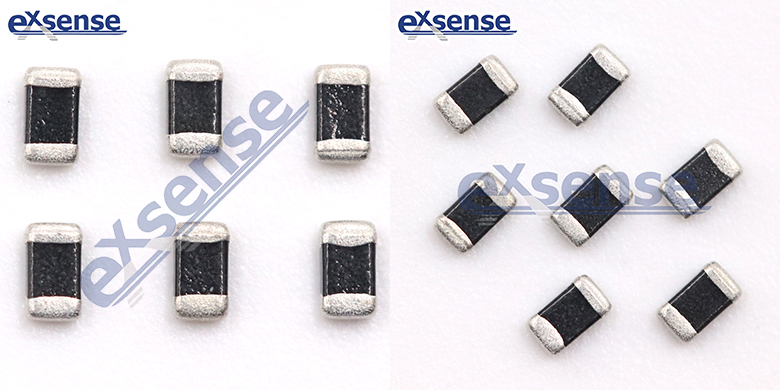

CT Series -- Chip Type NTC Thermistor

FEATURES

CT series NTC thermistor with glass packaging, has good moisture resistance and excellent reliability and stability. Patch type is suitable for high density SMT NTC thermistors. Exsense Electronics Technology Co., Ltd. specializes in the production, research and development of NTC thermistor chip and components, providing customers with professional technology and high quality service.

1. All sizes are constructed 4-side glass encapsulation, with high reliability and stability available.

2. Highly reliable multilayer and monolithic structure, leadless, ideal for high density SMT installation.

3. Excellent temperature coefficient, wide ranges of operating temperature (-40°C ~ +125°C).

APPLICATION

1. TCXO, temperature compensating circuit of LCD.
2. Temperature sensing in rechargeable batteries and chargers CPU.
3. IC and semiconductor protecting.
4. Printer temperature compensating circuit.
5. Telecom exchanger.
6. DC/AC transformer and HIC over heat protecting.

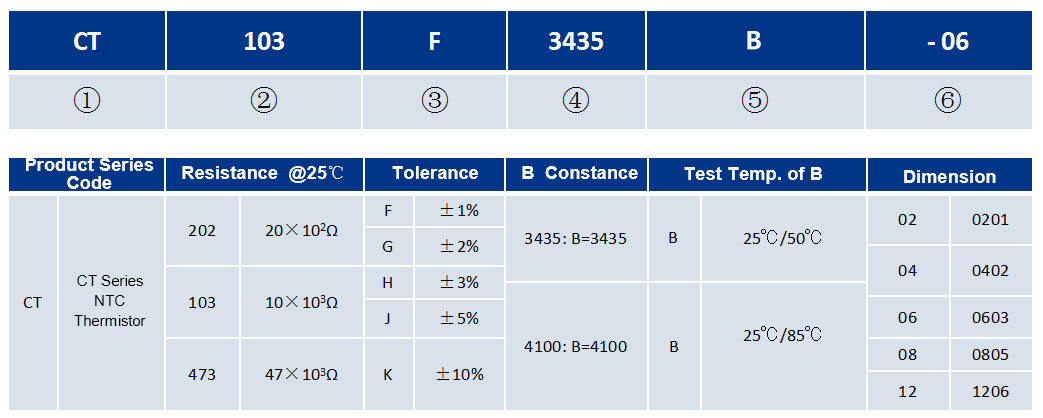

Part Number Identification

Electronic Parameter Specification

Part No.	R25（KΩ）	B Contance (25/50℃)	Rated Power @25℃(mW)	Dissipation Factor (mW/℃)	Thermal Time Contance(s)
CT103□3435B	10	3435(25/85℃)	0402: ≈100 0603: ≈150 0805: ≈200	0402: ≈1.0 0603: ≈1.5 0805: ≈2.0	0402: ≈2.0 0603: ≈3.0 0805: ≈5.0
CT103□3500A	10	3500
CT103□3950A	10	3950
CT473□4050A	47	4050
CT104□3950A	100	3950
CT104□4250A	100	4250

◆Special part number could be custom designed.

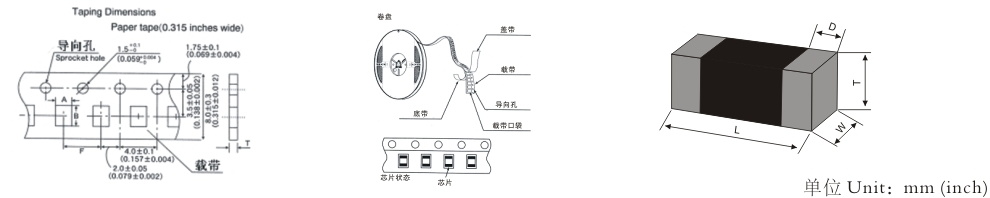

Package

Code

0402

1.0±0.15

(0.040±0.006)

0.5±0.1

(0.045±0.004)

0.5±0.15

(0.020±0.006)

0.25±0.10

(0.010±0.004)

0603

1.6±0.2

(0.063±0.008)

0.8±0.2

(0.031±0.008)

0.6±0.2

(0.024±0.008)

0.3±0.2

(0.01±0.008)

0805

2.0±0.2

(0.079±0.008)

1.2±0.2

(0.047±0.008)

0.6±0.2

(0.024±0.008)

0.5±0.3

(0.020±0.012)

1206

3.2±0.2

(0.126±0.008)

1.6±0.2

(0.063±0.008)

0.9±0.2

(0.035±0.008)

0. 5±0.3

(0.020±0.012)
