DTM Series -- Die (Bare Chip) NTC Thermistor for Medical Temperature Sensor

FEATURES

DTM series NTC thermal chip is a high-precision NTC chip with silver-plated surface, suitable for the production of high-precision medical temperature sensors. Exsense Electronics Technology Co., Ltd. provides you with the most professional NTC thermistor chip and NTC thermistor components technical services, you can consult by email, telephone, QQ and other methods.

1、High accuracy tolerances to +/-0.5%.
2、High stability.
3、Operating ranges: -20 ℃ ~ +100 ℃.

APPLICATION

1、High precision medical temperature sensor

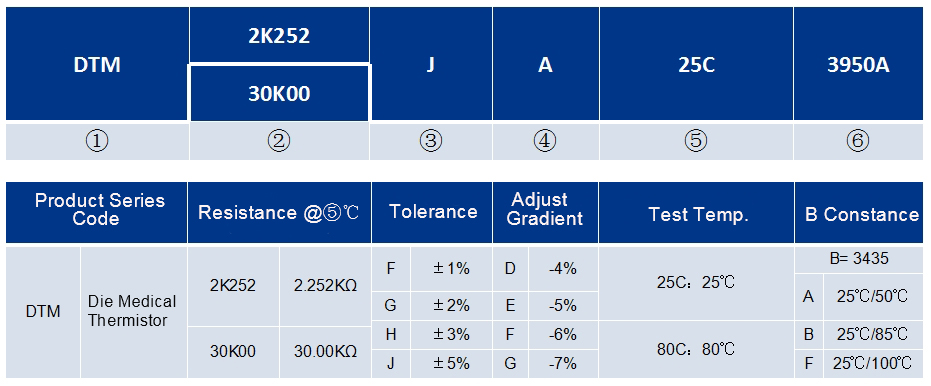

Part Number Identification

Electronic Parameter Specification

Part No.	R₂₅_℃ (KΩ)	R₃₇_℃ (KΩ)	B(K)	Rated Power @25℃（mW）	Dissipation Factor(δ) (mW/℃)	Thermal Time Constant (S)
DTM1K000□25C3977B	1.0	0.6016	3977	≤15	2	≤3.5
DTM2K252□25C3935A	2.252	1.355	3935
DTM6K000□25C3935A	6.0	3.610	3935
DTM10K00□25C3977B	10.0	6.016	3977
DTM10K00□25C3935A	10.0	6.016	3935
DTM10K00□25C3695B	10.0	6.258	3695
DTM20K00□25C4262B	20.0	11.628	4262
DTM30K00□25C3935A	30.0	18.048	3935

◆Special part number could be custom designed.

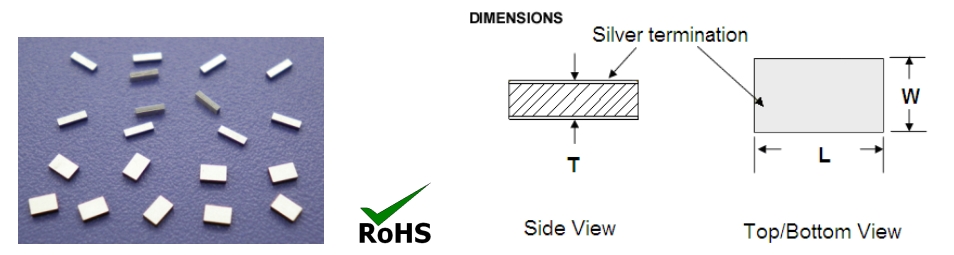

Package
