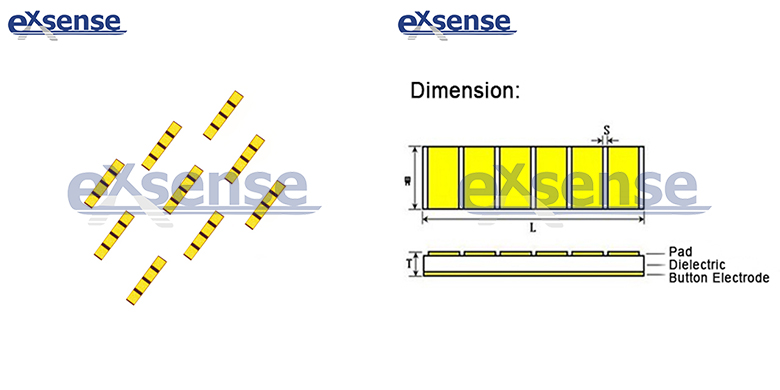

Single Layer Capacitor Array

FEATURES

The latest developed single layer capacitor array of Exsense Electronics is mainly used in microwave integrated circuits, decoupling circuit, RF bypass. It is simple for installation and it can not only reduce the cost of capacitor, but also reduce the costs of installation. Customized sizes and parameters are available.

1. Simple installation

2. Can be integrated into IC package to reduce bond wire lengths and improve performance.

3. Single insertion to reduce the cost of capacitor and installation.

APPLICATION

1. Microwave integrated circuit, decoupling, RF bypassing.

Part Number Identification

Electronic Parameter Specification

Size(mm) CAP.(PF)	G03±0.05	G04±0.05	G05±0.05	G06±0.05	G08±0.15	G11±0.15	G14±0.15	G18±0.25	G23±0.25
Size(mm) CAP.(PF)	0.3*0.3	0.4*0.4	0.5*0.5	0.6*0.6	0.8*0.8	1.1*1.1	1.4*1.4	1.8*1.8	2.3*2.3
0.1(0R1)	√	√
0.2(0R2)	√	√	√	√
0.3(0R3)	√	√	√	√
0.5(0R5)	√	√	√	√	√
1.0(1R0)	√	√	√	√	√	√	√
1.2(1R2)	√	√	√	√	√	√	√
2.7(2R7)	√	√	√	√	√	√	√
3.0(3R0)	√	√	√	√	√	√	√
3.6(3R6)	√	√	√	√	√	√	√
5.1(5R1)	√	√	√	√	√	√	√
10(100)	√	√	√	√	√	√	√
15(150)	√	√	√	√	√	√	√
22(220)	√	√	√	√	√	√	√
27(270)	√	√	√	√	√	√	√
33(330)	√	√	√	√	√	√	√
47(470)	√	√	√	√	√	√	√
56(560)	√	√	√	√	√	√	√
68(680)	√	√	√	√	√	√	√
82(820)	√	√	√	√	√	√	√
100(101)	√	√	√	√	√	√	√
150(151)	√	√
220(221)	√	√	√	√	√	√	√
270(271)	√	√
330(331)	√	√	√	√	√	√	√
390(391)			√	√
470(471)			√	√	√	√	√
560(561)			√	√	√	√	√
680(681)			√	√	√	√	√
750(751)			√	√	√	√	√
820(821)			√	√	√	√	√
1000(102)						√	√
1200(122)					√	√	√
1500(152)					√	√	√
1800(182						√	√
2200(222)						√	√
2700(272)						√	√
3300(332)						√	√	√
3900(392)								√
4700(472)								√
5600(562)								√
6200(622)								√	√
6800(682)								√	√
7500(752)									√
8200(822)									√
10000(103)									√

Noted：0.3*0.3±0.05 (Lenght0.3mm* Width0.3mm±0.05 )

Special specifications can be customized Designed
