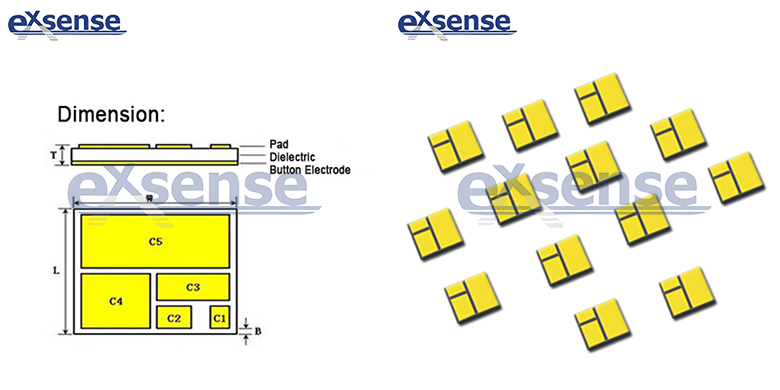

Binary Multi Electrode Single Layer Capacitor

FEATURES

The newly developed binary multi electrode layer capacitor is mainly for matching the network, providing convenient circuit tunability and separating the DC applications and coupling capacitors. The small geometry size is good for circuit matching and adjustment. It can be customized according to customer requirements of different sizes and parameters.

1. Small size, suitable for microwave geometries.
2. Ideal for prototype circuit.

APPLICATION

1. Matching networks, tank circuits, dielectric resonator tuning/coupling.

Part Number Identification

Electronic Parameter Specification

Size(mm) CAP.(PF)	G03±0.05	G04±0.05	G05±0.05	G06±0.05	G08±0.15	G11±0.15	G14±0.15	G18±0.25	G23±0.25
Size(mm) CAP.(PF)	0.3*0.3	0.4*0.4	0.5*0.5	0.6*0.6	0.8*0.8	1.1*1.1	1.4*1.4	1.8*1.8	2.3*2.3
0.1(0R1)	√	√
0.2(0R2)	√	√	√	√
0.3(0R3)	√	√	√	√
0.5(0R5)	√	√	√	√	√
1.0(1R0)	√	√	√	√	√	√	√
1.2(1R2)	√	√	√	√	√	√	√
2.7(2R7)	√	√	√	√	√	√	√
3.0(3R0)	√	√	√	√	√	√	√
3.6(3R6)	√	√	√	√	√	√	√
5.1(5R1)	√	√	√	√	√	√	√
10(100)	√	√	√	√	√	√	√
15(150)	√	√	√	√	√	√	√
22(220)	√	√	√	√	√	√	√
27(270)	√	√	√	√	√	√	√
33(330)	√	√	√	√	√	√	√
47(470)	√	√	√	√	√	√	√
56(560)	√	√	√	√	√	√	√
68(680)	√	√	√	√	√	√	√
82(820)	√	√	√	√	√	√	√
100(101)	√	√	√	√	√	√	√
150(151)	√	√
220(221)	√	√	√	√	√	√	√
270(271)	√	√
330(331)	√	√	√	√	√	√	√
390(391)			√	√
470(471)			√	√	√	√	√
560(561)			√	√	√	√	√
680(681)			√	√	√	√	√
750(751)			√	√	√	√	√
820(821)			√	√	√	√	√
1000(102)						√	√
1200(122)					√	√	√
1500(152)					√	√	√
1800(182						√	√
2200(222)						√	√
2700(272)						√	√
3300(332)						√	√	√
3900(392)								√
4700(472)								√
5600(562)								√
6200(622)								√	√
6800(682)								√	√
7500(752)									√
8200(822)									√
10000(103)									√

Noted：0.3*0.3±0.05 (Lenght0.3mm* Width0.3mm±0.05 )

Special specifications can be customized Designed
